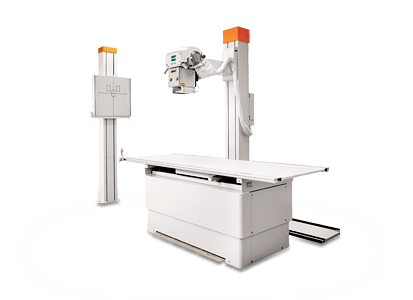

Amadeo R Systems
Universal X-ray systems with Bucky table and wall stand – ideally suited for confined spaces.
Amadeo S Systems (Motorised)
Motorised digital U-arm system for all applications in diagnostic radiography.
The Amadeo S-DR motorised is a motorised U-arm X-ray system for the production of all diagnostic projection radiography images. Both its compact design and the minimum ceiling height of only 2.40 m make the system perfectly suited for small rooms. It includes all necessary components and functions for digital X-ray without cassettes: motorised U-arm system, generator, X-ray detector, PC and the dicomPACS®DX-R acquisition and diagnostic software.
The very flexible and partially motorised positioning of the stand allows a wide range of images to be acquired. These can be taken on sitting, standing or lying patients (table optional). All important settings and operating operations are performed via an integrated 10″ touchscreen display console.
Both bucky tray and tube can be rotated and thus allow very variable X-ray settings. All necessary device positions can be pre-defined on the 60 available program slots to ensure quick positioning on the patient.
The high-resolution, digital CsI X-ray detector, the removable grid and an active grid recognition system ensure best image quality for all images. Intelligent collision sensors ensure patient protection by interrupting the movement in case of possible patient contact or contact with objects in the X-ray room.
The Amadeo S-DR motorised is controlled by our powerful X-ray acquisition software dicomPACS®DX-R. The software enables a very simple and intuitive operation and the automatic setting of all necessary parameters.
Two versions of the Amadeo S motorised U-arm X-ray system are available:
| Amadeo S-DR motorised: | With a built-in X-ray detector (43 cm x 43 cm) |
| Amadeo S-DR motorised: | with a wireless X-ray detector (35 cm x 43 cm) |
Features and Benefits of Amadeo S motorised Systems:
| Optimal | designed especially for small rooms (min. W/H/D 2.30 x 2.40 x 1.70 m) – guaranteed through compact design and collision sensors for room height and detector position for recordings on standing, sitting and lying patients |
| Convenient | easy manual positioning in all directions, including detector tilt for oblique projections – allows comfortable working |
| Simple | 60 preset positions for stand height, orientation and SID for each examination type |
| Comfortable | through automatic tripod positioning, motorised adjustment of the shooting specific film focus distance and customised anatomical programming (APR) |
| Efficient | Quick and easy positioning of the tripod –> detector +/-40° rotatable and tube +/-90°, partly motorised |
| Safe | integrated safety functions with emergency stop buttons and collision sensors |
| Sophisticated | control of the high-frequency generator and all system components via integrated 10″ touch screen display console with multilingual support |
| Excellent | high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses |
| User-friendly | self-explanatory OR Technology acquisition software dicomPACS®DX-R including free special measurement functions |
| Fast | shortly after taking the shot (6 – 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation |
| Cleverly designed | integrated X-ray positioning guide helps choose the perfect positioning |
| Accessibility | integrated diagnostic software offers a worldwide, fast and cost-effective exchange of information (via cloud or email) |

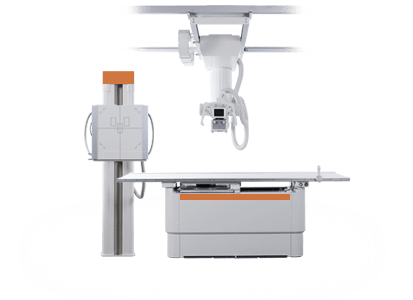

Amadeo C Systems
Ceiling-mounted X-ray systems with patient table and wall stand.
Amadeo V nano Systems
Space-saving X-ray system for standard wall socket outlet operation with floating table top.
The X-ray system Amadeo V nano was specially designed for small animal practices and meets all requirements of modern veterinary medicine. The table is equipped with a floating table top. The X-ray system can be connected to a standard socket (5.6kW/220V). Therefore, no major conversion measures are necessary.
The high-frequency generator is integrated directly into the X-ray table to save space. The compact design allows installation in the tightest of spaces. The powder coating makes the unit insensitive to impact damage and easy to clean.
The dicomPACS®DX-R control console takes over all functions for the operation of the X-ray system (except for the AX version): from controlling the X-ray generator to providing the top-quality image for evaluation. In addition, the integrated multimedia X-ray positioning guide assists with patient positioning and software settings.
Three versions are available:
| Amadeo V-DR nano | with built-in CsI X-ray detector 17″ x 14″ (active area 43.3 x 35.5 cm) |
| Amadeo V-DR nano | with built-in CsI X-ray detector 17″ x 17″ (active area 43.2 x 43.2 cm) |
| Amadeo V-AX nano | X-ray system for use with film or CR cassettes or existing DR system without generator control |
Features and Benefits of the Amadeo V nano System
| Economical | Can be used with a standard wall socket (5.6kW/220V) – no major reconstruction work necessary |
| Comfortable | floating tabletop with silent brakes – generous range of movement |
| Straightforward | Rotatable light-beam diaphragm with LED lighting/timer – can be switched on and off by foot switch |
| Compact, small and space-saving | 220V high frequency generator integrated directly in the X-ray table |
| Excellent | high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses |
| Optimal | Removable grid for perfect image quality |
| User friendly | intuitive OR Technology acquisition software dicomPACS®DX-R including free special measuring functions |
| Efficient | Integration into your existing practice management system – patient data at the touch of a button (except AX version) |
| Fast | Shortly after taking the shot (6 – 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation |
| Cleverly designed | Integrated X-ray positioning guide (for examinations of cats and dogs) |
| Safe | Clamps for attaching restraints – staff can leave the controlled area during the shot |
Amadeo T Systems
X-ray system for taking thorax and other X-rays of standing and seated patients.
Simple operation and handling of the Amadeo T X-ray system guarantee fast training of the X-ray personnel and guarantees perfect lung and other X-ray images of standing and seated patients. The entire system is controlled by our professional acquisition and diagnostic software dicomPACS®DX-R. The compact design of the X-ray system allows installation in the tightest of spaces.
All images of sitting or standing patients can be taken effortlessly. The X-ray source and the bucky drawer of the grid wall stand can be lowered to the floor. Options such as motorised auto-tracking can optimise work.
Versions of the Amadeo T X-ray system are available:
| Amadeo T-DR: | with fixed CsI X-ray detectors (43 x 43 cm) |
Features & Benefits of Amadeo T systems:
| Optimal | for small rooms fully operational even in confined spaces |
| Complete | X-ray images from head to toe – X-ray images of the skull, thorax, pelvis, skeleton and extremities can be taken on a sitting or standing patient. |
| Simple | convenient, problem-free operation thanks to functional design – X-ray tube and Bucky tray can be lowered down to the ground |
| Time-saving | No additional effort required for rotating the detector (when using a 43 x 43 cm detector) – no tedious turning for landscape or portrait shots |
| Efficient | integration into your existing patient management system – patient data at the push of a button |
| Excellent | high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses |
| User-friendly | self-explanatory OR Technology acquisition software dicomPACS®DX-R including free special measurement functions |
| Fast | shortly after taking the shot (6 – 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation |
| Cleverly designed | integrated X-ray positioning guide helps choose the perfect positioning for each examination inclusive helpful photos, videos and correct X-rays images |
| Accessibility | integrated diagnostic software offers a worldwide, fast and cost-effective information exchange (via cloud or email) |
| One of a kind | safe and quick registration of emergency patients and user-defined macros for recurring examinations, e.g. thorax screenings |
For more information, visit OR Technology.

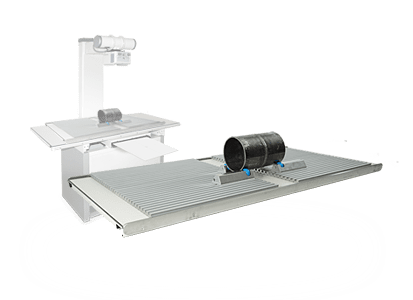

Amadeo NDT
Individual systems – tailored to specific test processes.
